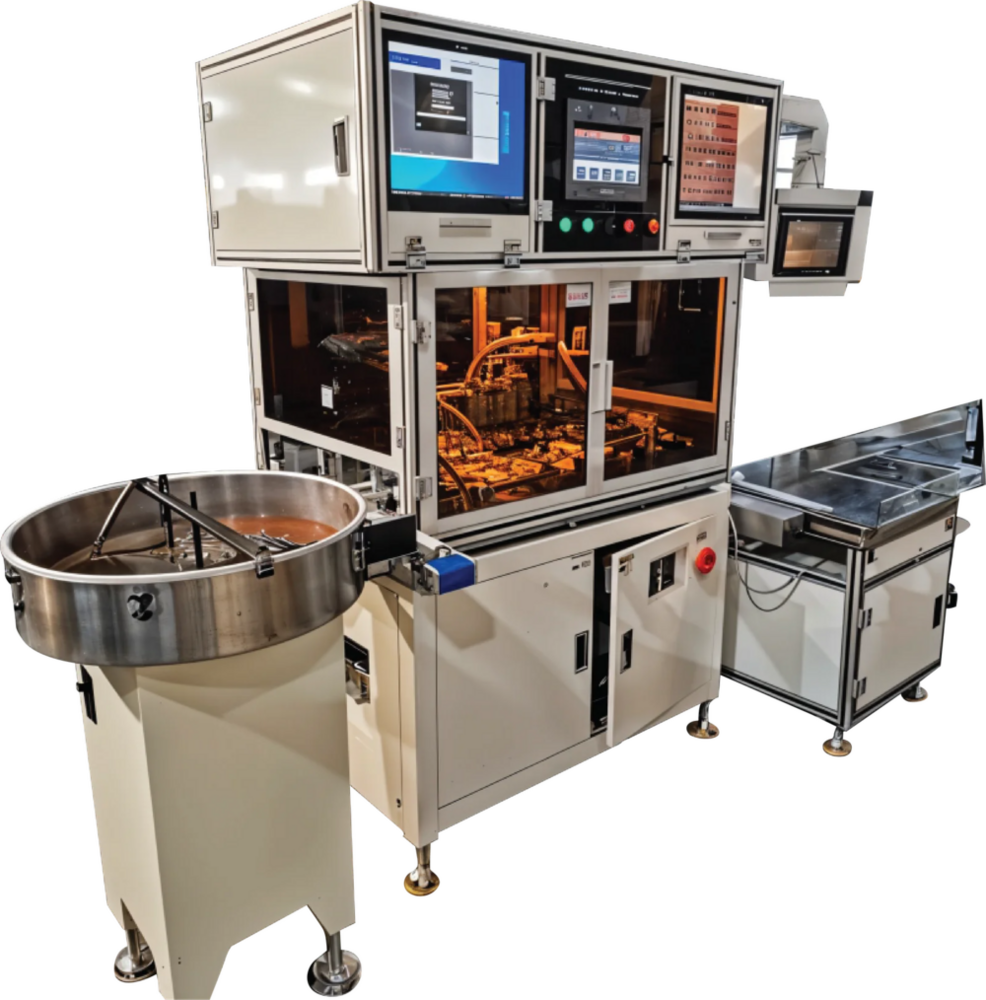

Automatic Eddy Current Testing Machine

Name: Automatic Eddy Current Testing Machine
Brand: SHARDA INDUSTRIES
Price: 1000000 INR
Availability: InStock

Price 1000000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic Eddy Current Testing Machine Specification

Product Type
Automatic

Material
Standard

Capacity
100-200 parts per hour

Computerized
Yes

Automatic Grade
Fully Automatic

Control System
PLC Based

Processing Type
Non-Destructive Testing

Voltage
220-240V AC

Power
1.5 kW

Dimension (L*W*H)
1600 x 900 x 1500 mm

Weight
Approx. 400 kg

Color
Standard

Test Method
Eddy Current (Electromagnetic Induction)

Sorting Option
Good/Bad Part Ejection

Probe Type
High Sensitivity Eddy Current Probe

Calibration
Auto Calibration with Standard Probe

Alarm System
Audio-Visual Rejection Indication

Application
Surface Crack, Material Mix-up & Hardness Sorting

Inspection Range
1 mm to 100 mm diameter

Test Speed
Up to 3 m/sec

Display Type
Touchscreen HMI

Operating Temperature
5C to 45C

Data Storage
USB & Ethernet connectivity

Automatic Eddy Current Testing Machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
VADODARA

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Units Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia

About Automatic Eddy Current Testing Machine

Get ahead in quality control with our commanding Automatic Eddy Current Testing Machine-an in demand solution designed for crowning precision in surface crack detection, material mix-up, and hardness sorting. Harnessing glorious eddy current (electromagnetic induction) testing, it inspects diameters from 1 mm to 100 mm at speeds up to 3 m/sec. Experience high sensitivity through its standard probe, advanced touch HMI, and swift USB/Ethernet data storage. Benefit from Audio-Visual alarms, auto calibration, and robust PLC-based control for reliable, non-destructive, fully automatic testing. Advance Purchase highly recommended!

Optimum Application & Use Across Industries

The Automatic Eddy Current Testing Machine finds application media in surface crack detection, hardness sorting, and material mix-up identification. Its site of application spreads across manufacturing lines, quality assurance labs, and incoming raw material inspection units. Suitable for use with metal rods, tubes, and components ranging from 1 mm to 100 mm in diameter, it delivers non-destructive evaluation for a wide array of standard and custom industrial requirements, ensuring precise evaluation every time.

Streamlined Packaging & Quick Dispatch

Our Automatic Eddy Current Testing Machine is securely packaged to prevent transit damage and complies with export standards for a smooth handover. Dispatch is swift, ensuring your order reaches the specified FOB port on schedule. We offer sample units for evaluation at an attractive list price. Quick dispatch and robust support enable you to integrate the system seamlessly into your operations, reinforcing your testing capabilities without delay.

FAQ's of Automatic Eddy Current Testing Machine:

Q: How does the Automatic Eddy Current Testing Machine work?

A: The machine operates using electromagnetic induction (eddy current testing) to detect surface cracks, material mix-ups, and hardness variations in parts ranging from 1 mm to 100 mm diameter. The high-sensitivity probe scans parts, and results are displayed on the touchscreen HMI.

Q: What are the main benefits of using this testing machine?

A: Key benefits include non-destructive testing, rapid and precise inspection speeds up to 3 m/sec, automated good/bad part ejection, instant audio-visual alerts, and robust data management with USB/Ethernet storage. Auto calibration and PLC-based controls enhance accuracy and ease of operation.

Q: Where is this machine suitable for use?

A: It is ideally suited for manufacturing lines, quality assurance labs, and material inspection units dealing with rods, tubes, and other cylindrical metal components within the 1-100 mm inspection range.

Q: When should I consider advance purchase of this machine?

A: Considering its capacity and rising demand, advance purchase is recommended to guarantee timely installation, integrate the equipment into your workflow, and avoid delays due to lead times or high industry demand.

Q: What is the packaging and delivery process?

A: The machine is securely packaged according to export standards for damage-free transport. Quick dispatch is assured, and we deliver to your chosen FOB port. Sample units are also available for demonstration or evaluation.
